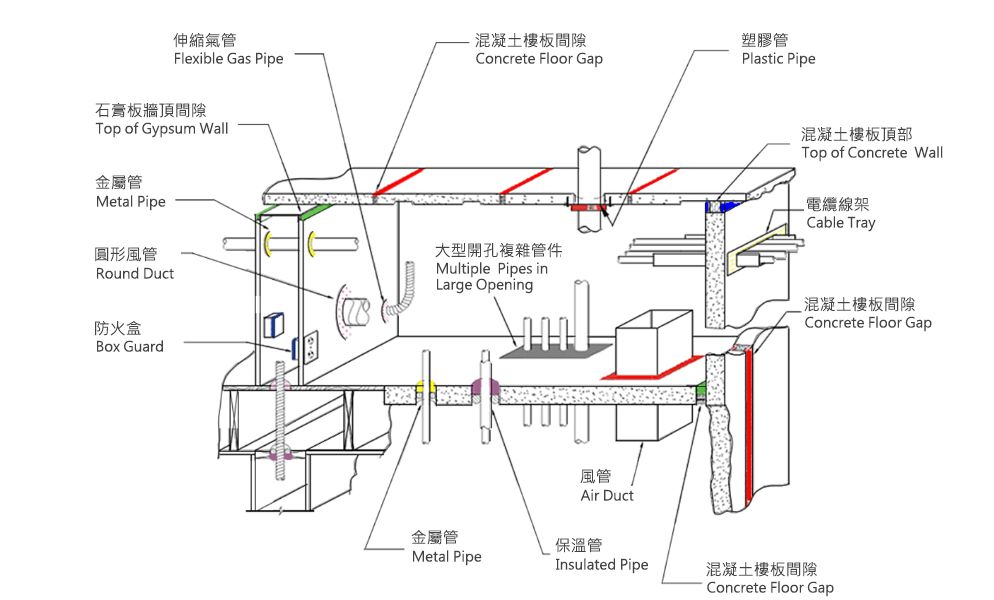

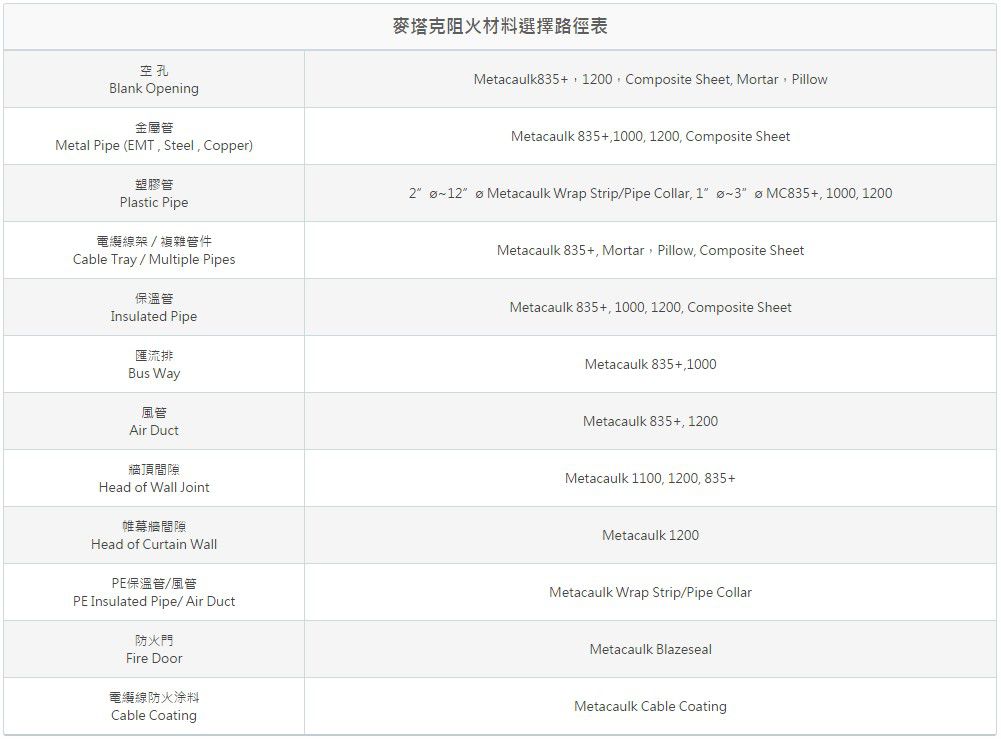

| 空 孔 Blank Opening |
Metacaulk835+，1200，Composite Sheet, Mortar，Pillow |
| 金屬管 Metal Pipe (EMT , Steel , Copper) |
Metacaulk 835+,1000, 1200, Composite Sheet |
| 塑膠管 Plastic Pipe |
2”ø~12”ø Metacaulk Wrap Strip/Pipe Collar, 1”ø~3”ø MC835+, 1000, 1200 |
| 電纜線架 / 複雜管件 Cable Tray / Multiple Pipes |
Metacaulk 835+, Mortar，Pillow, Composite Sheet |
| 保溫管 Insulated Pipe |
Metacaulk 835+, 1000, 1200, Composite Sheet |
| 匯流排 Bus Way |
Metacaulk 835+,1000 |
| 風管 Air Duct |
Metacaulk 835+, 1200 |
| 牆頂間隙 Head of Wall Joint |
Metacaulk 1100, 1200, 835+ |
| 帷幕牆間隙 Head of Curtain Wall |
Metacaulk 1200 |
| PE保溫管/風管 PE Insulated Pipe/ Air Duct |
Metacaulk Wrap Strip/Pipe Collar |
| 防火門 Fire Door |
Metacaulk Blazeseal |
| 電纜線防火涂料 Cable Coating |
Metacaulk Cable Coating |
| 管件類型 The Type of Penetration |
樓牆板類型 The Type of floor/wall |
內政部核可工法編號 The approved system No. by government |
防火時效(F-Rating) Fire endurance rating |
認証尺寸 The approved Max.size |
使用材料 The applied Materiels |
防火泥厚度 The thickness of firestop sealant |
防火紮帶圈/層數 The Layers/stacks of wrap strip |
|

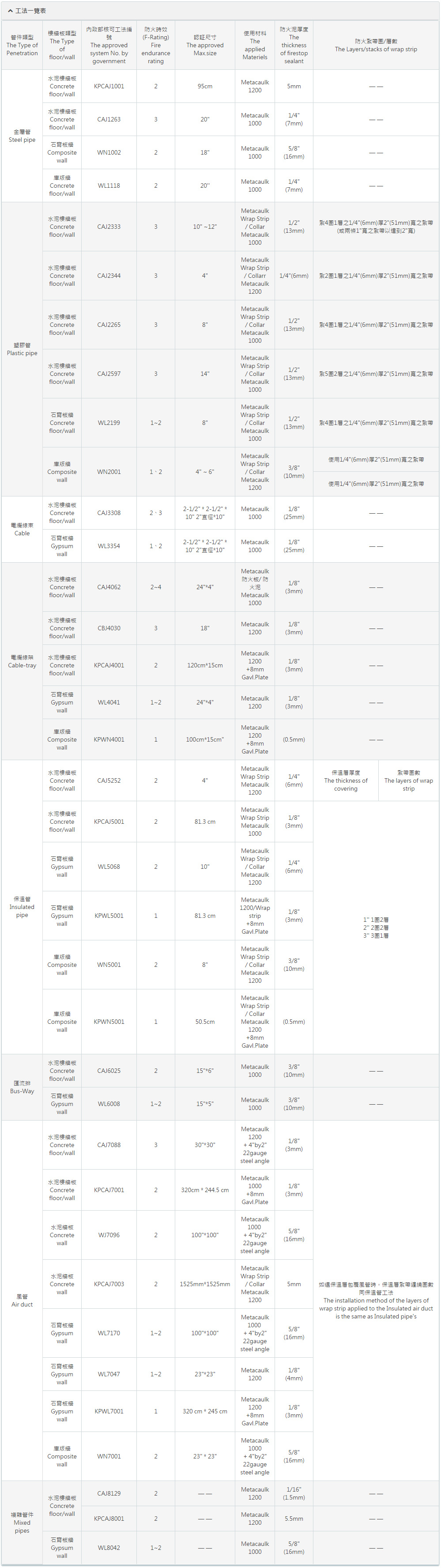

| 金屬管 Steel pipe |
||||||||
| 水泥樓牆板 Concrete floor/wall |
KPCAJ1001 | 2 | 95cm | Metacaulk 1200 | 5mm | — — | ||
| 水泥樓牆板 Concrete floor/wall |
CAJ1263 | 3 | 20" | Metacaulk 1000 | 1/4" (7mm) | — — | ||
| 石膏板牆 Composite wall |
WN1002 | 2 | 18" | Metacaulk 1000 | 5/8" (16mm) | — — | ||
| 庫版牆 Concrete floor/wall |
WL1118 | 2 | 20'' | Metacaulk 1000 | 1/4" (7mm) | — — | ||
| 塑膠管 Plastic pipe |
||||||||
| 水泥樓牆板 Concrete floor/wall |
CAJ2333 | 3 | 10" ~12" | Metacaulk Wrap Strip / Collar Metacaulk 1000 |
1/2" (13mm) | 紮4圈1層之1/4"(6mm)厚2"(51mm)寬之紮帶 (或兩條1"寬之紮帶以達到2"寬) | ||
| 水泥樓牆板 Concrete floor/wall |
CAJ2344 | 3 | 4" | Metacaulk Wrap Strip / Collarr Metacaulk 1200 |
1/4"(6mm) | 紮2圈1層之1/4"(6mm)厚2"(51mm)寬之紮帶 | ||
| 水泥樓牆板 Concrete floor/wall |
CAJ2265 | 3 | 8" | Metacaulk Wrap Strip / Collar Metacaulk 1000 |
1/2"(13mm) | 紮4圈1層之1/4"(6mm)厚2"(51mm)寬之紮帶 (或兩條1"寬之紮帶以達到2"寬) | ||
| 水泥樓牆板 Concrete floor/wall |
CAJ2597 | 3 | 14" | Metacaulk Wrap Strip / Collar Metacaulk 1000 |
1/2"(13mm) | 紮5圈2層之1/4"(6mm)厚2"(51mm)寬之紮帶 | ||
| 石膏板牆 Concrete floor/wall |
WL2199 | 1~2 | 8" | Metacaulk Wrap Strip / Collar Metacaulk 1000 |
1/2"(13mm) | 紮4圈1層之1/4"(6mm)厚2"(51mm)寬之紮帶 (或兩條1"寬之紮帶以達到2"寬) | ||
| 庫版牆 Composite wall |
WN2001 | 1、2 | 4" ~ 6" | Metacaulk Wrap Strip / Collar Metacaulk 1200 |
3/8" (10mm) | 使用1/4"(6mm)厚2"(51mm)寬之紮帶 | ||
| 使用1/4"(6mm)厚2"(51mm)寬之紮帶 | ||||||||
| 電纜線束 Cable |
||||||||
| 水泥樓牆板 Concrete floor/wall |
CAJ3308 | 2、3 | 2-1/2" * 2-1/2" * 10" 2"直徑*10" | Metacaulk 1000 | 1/8"(25mm) | — — | ||
| 石膏板牆 Gypsum wall |
WL3354 | 1、2 | 2-1/2" * 2-1/2" * 10" 2"直徑*10" | Metacaulk 1000 | 1/8"(25mm) | — — | ||
| 電纜線架 Cable-tray |
||||||||
| 水泥樓牆板 Concrete floor/wall |
CAJ4062 | 2~4 | 24"*4" | Metacaulk防火板/ 防火泥 Metacaulk 1000 |
1/8" (3mm) | — — | ||
| 水泥樓牆板 Concrete floor/wall |
CBJ4030 | 3 | 18" | Metacaulk 1200 | 1/8" (3mm) | — — | ||
| 水泥樓牆板 Concrete floor/wall |
KPCAJ4001 | 2 | 120cm*15cm | Metacaulk 1200 +8mm Gavl.Plate |
1/8" (3mm) | — — | ||
| 石膏板牆 Gypsum wall |
WL4041 | 1~2 | 24"*4" | Metacaulk 1200 | 1/8" (3mm) | — — | ||
| 庫版牆 Composite wall |
KPWN4001 | 1 | 100cm*15cm" | Metacaulk 1200 +8mm Gavl.Plate |
(0.5mm) | — — | ||
| 保溫管 Insulated pipe |
||||||||
| 水泥樓牆板 Concrete floor/wall |
CAJ5252 | 2 | 4" | Metacaulk Wrap Strip Metacaulk 1200 |
1/4" (6mm) | 保溫層厚度 The thickness of covering |
紮帶圈數 The layers of wrap strip |
|
| 水泥樓牆板 Concrete floor/wall |
KPCAJ5001 | 2 | 81.3 cm | Metacaulk Wrap Strip Metacaulk 1000 |
1/8" (3mm) | 1'' 1圈2層 2'' 2圈2層 3' 3圈1層 |
||
| 石膏板牆 Gypsum wall |
WL5068 | 2 | 10" | Metacaulk Wrap Strip / Collar Metacaulk 1200 |
1/4" (6mm) | |||
| 石膏板牆 Gypsum wall |
KPWL5001 | 1 | 81.3 cm | Metacaulk 1200/Wrap strip +8mm Gavl.Plate |
1/8" (3mm) | |||
| 庫版牆 Composite wall |
WN5001 | 2 | 8" | Metacaulk Wrap Strip / Collar Metacaulk 1200 |
3/8" (10mm) | |||
| 庫版牆 Composite wall |
KPWN5001 | 1 | 50.5cm | Metacaulk Wrap Strip / Collar Metacaulk 1200 +8mm Gavl.Plate |
(0.5mm) | |||
| 匯流排 Bus-Way |
||||||||
| 水泥樓牆板 Concrete floor/wall |
CAJ6025 | 2 | 15"*6" | Metacaulk 1000 | 3/8" (10mm) | — — | ||
| 石膏板牆 Gypsum wall |
WL6008 | 1~2 | 15"*5" | Metacaulk 1000 | 3/8" (10mm) | — — | ||
| 風管 Air duct |
||||||||
| 水泥樓牆板 Concrete floor/wall |
CAJ7088 | 3 | 30"*30" | Metacaulk 1200 + 4"by2" 22gauge steel angle |
1/8" (3mm) | 如遇保溫層包覆風管時，保溫層紮帶纏繞圈數同保溫管工法 The installation method of the layers of wrap strip applied to the Insulated air duct is the same as Insulated pipe's |
||
| 水泥樓牆板 Concrete floor/wall |
KPCAJ7001 | 2 | 320cm * 244.5 cm | Metacaulk 1000 +8mm Gavl.Plate |
1/8" (3mm) | |||
| 水泥牆板 Concrete wall |
WJ7096 | 2 | 100"*100" | Metacaulk 1000 + 4"by2" 22gauge steel angle |
5/8" (16mm) | |||
| 水泥牆板 Concrete wall |
KPCAJ7003 | 2 | 1525mm*1525mm | Metacaulk Wrap Strip / Collar Metacaulk 1200 |
5mm | |||
| 石膏板牆 Gypsum wall |
WL7170 | 1~2 | 100"*100" | Metacaulk 1000 + 4"by2" 22gauge steel angle |
5/8" (16mm) | |||
| 石膏板牆 Gypsum wall |
WL7047 | 1~2 | 23"*23" | Metacaulk 1200 | 1/8" (4mm) | |||
| 石膏板牆 Gypsum wall |
KPWL7001 | 1 | 320 cm * 245 cm | Metacaulk 1200 +8mm Gavl.Plate |
1/8" (3mm) | |||
| 庫版牆 Composite wall |
WN7001 | 2 | 23" * 23" | Metacaulk 1000 + 4"by2" 22gauge steel angle |
5/8" (16mm) | |||
| 複雜管件 Mixed pipes |
||||||||
| 水泥樓牆板 Concrete floor/wall |
CAJ8129 | 2 | — — | Metacaulk 1200 | 1/16" (1.5mm) | — — | ||
| KPCAJ8001 | 2 | — — | Metacaulk 1200 | 5.5mm | — — | |||
| 石膏板牆 Gypsum wall |
WL8042 | 1~2 | — — | Metacaulk 1000 | 5/8" (16mm) | — — | ||
